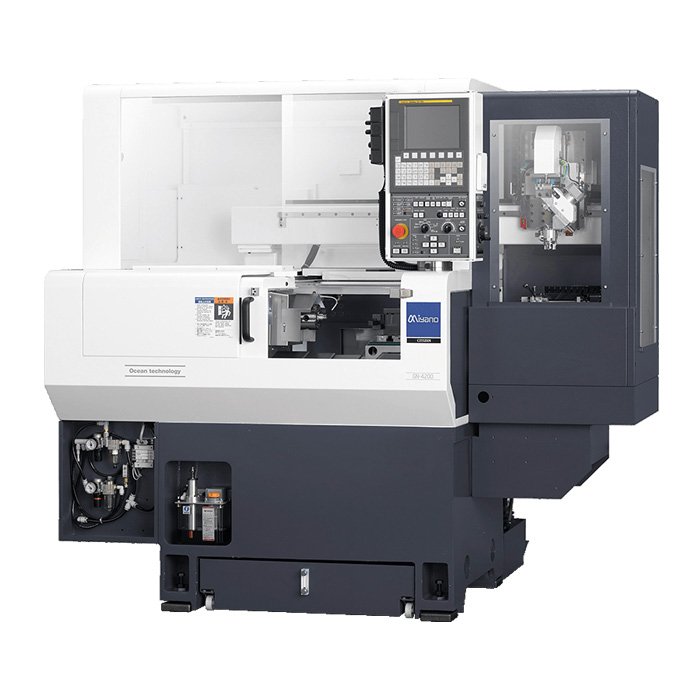

| GN-4200 Taking small diameter work piece as high-precision processing objective;
Inheriting of Ocean Cincom tradition;
High precision chuck machine tool;
1.5 times of feeding speed compare with original machine;
Shorten cutting time by large scale;
Product specification
| Model |
|
GN-4200 |
| processing capacity&clamp system |
| cutting diameter |
extra high-precision pneumatic chuck |
45mm |
| drawing type expanding chuck |
40mm (static-type35mm) |
| maximum machining length |
|
80mm |
| principal axis |
| principal axis motor |
15 minutes/continious |
5.5 / 3.7kW |
| principal axis rotational speed |
|
8,000 min-1 |
| guide rail |
| tool table type |
|
horizontal spindle cutter |
| guide rail type |
X axis |
swallow-tail form guide rail |
| Z axis |
swallow-tail form guide rail |
| guide raillift |
X axis |
300mm |
| Z axis |
250mm |
| size of the machine tool |
| height of machine tool |
|
1,695mm |
| required area |
|
W1,350mm×D1,325mm |
| weight of machine tool (real body) |
|
1,500kg |
|
