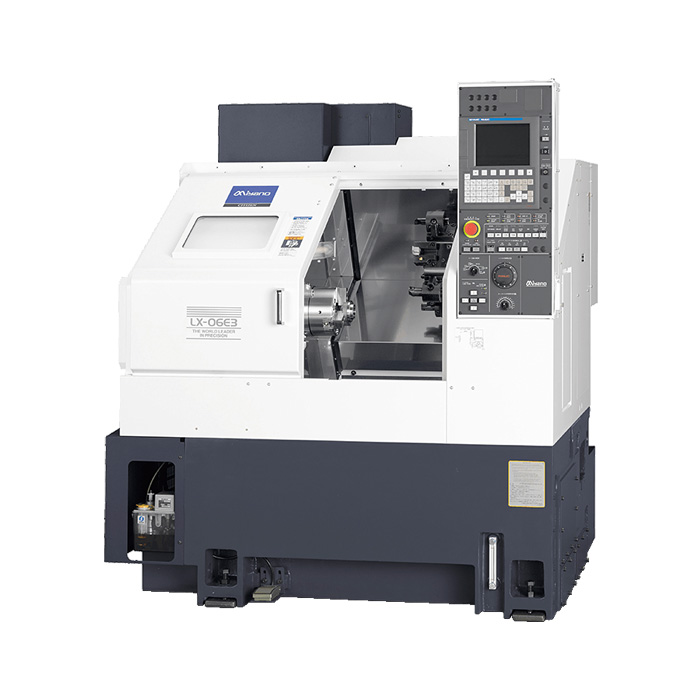

| LX-06E Adoption of high stiffiness grinding table;
High dimensionality and high stability;
Reduce manual operation through mechanical arm and NC mechanical arm;
Product specification
| Model |
|
LX-06E3 |
| hydraulic chuck size |
|
6" oil pressure |
| expanding chuckmaximum machining diameter |
static-type / pull type |
50 / 55mm |
| maximum machining diameter |
|
165mm |
| maximum machining length |
tailstock |
250mm |
| principal axis rotational speed |
|
60～5,000 min-1 |
| principal axis motor |
30 minutes/continious |
VAC 7.5 / 5.5kW |
| tool table type |
|
8 angles turret |
| height of knife handle |
|
□20mm |
| diameter of opening bit knife handle |
|
32mm |
| move lift |
X axis |
150mm |
| Z axis |
300mm |
| scale division time |
|
0.25 sec./ 1 pos. |
| tailstock top form |
|
MT.3 |
| tailstock maximum thrust |
|
4,900N(500kgf) |
| tailstock move lift |
|
100 |
| floor dimension (real body) |
|
1,550×1,480mm |
| weight of machine tool (real body) |
|
about 2,500 kg |
|
